FPV Optical Fiber Digital Communication Module
Utilizes fiber optic as the transmission medium, offering high-speed data transfer and strong stability. It supports large-volume data transmission, is immune to electromagnetic interference, and enhances security by preventing signal interception. Capable of supporting wired transmission over distances of up to 30 kilometers.
The Optical Fiber Digital Communication Module revolutionizes traditional radio-based communication methods for drones, robots, and similar devices by using 0.15–0.43 mm optical fiber for wired transmission. It is ideal for applications such as FPV drones, underwater vehicles, and indoor drones, effectively overcoming limitations posed by terrain, transmission media, and electromagnetic interference.
Sky and Ground Fiber Media Converter
Analog video and control signals can be converted into optical fiber signals for ultra-long-distance, delay-free transmission, ensuring reliable communication even in environments where wireless signals are prone to interference. Used with the custom Fiber Optic Spool, it ensures the drone fly up to 30km without interference.

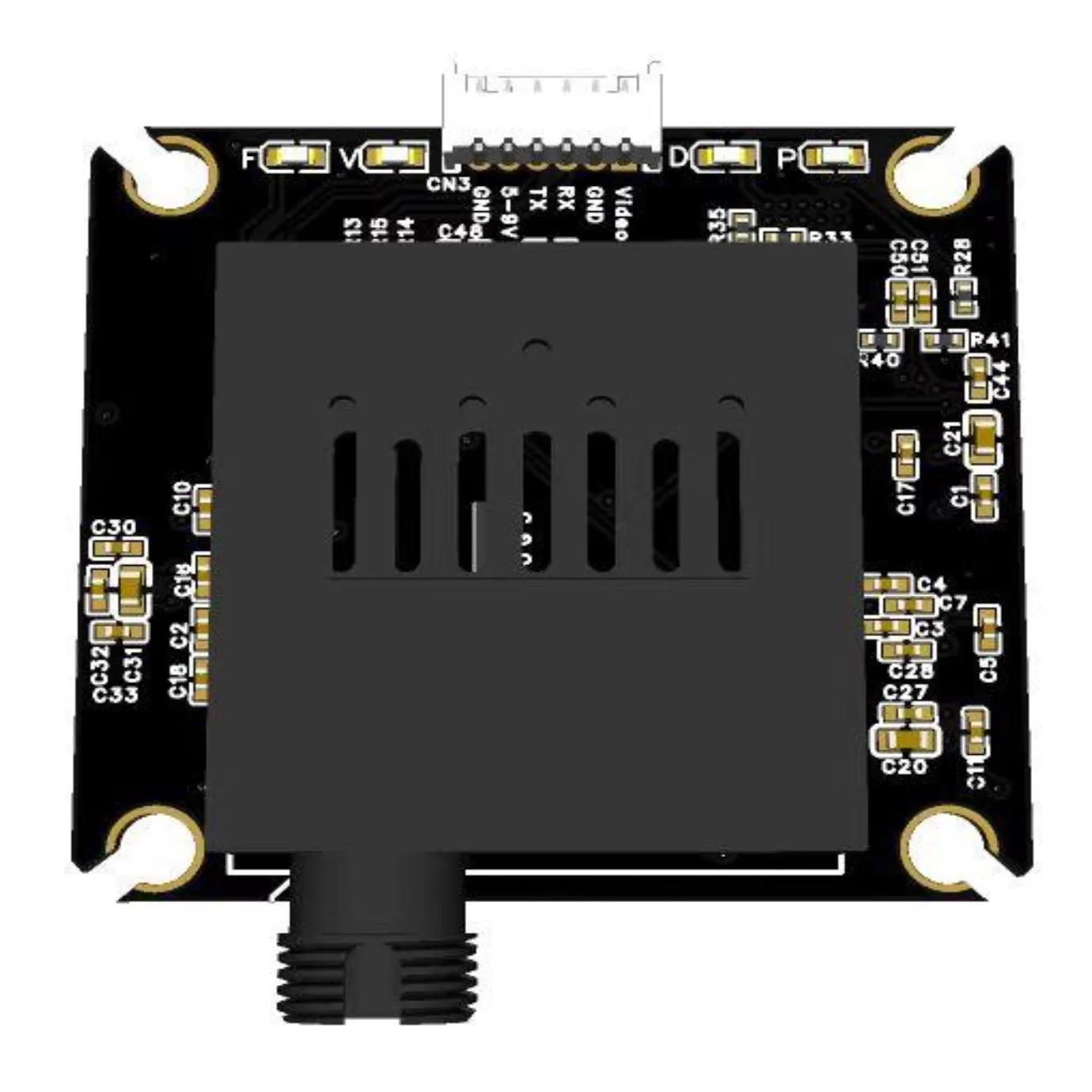

Fiber Optical Signal Transmitter / Sky Module

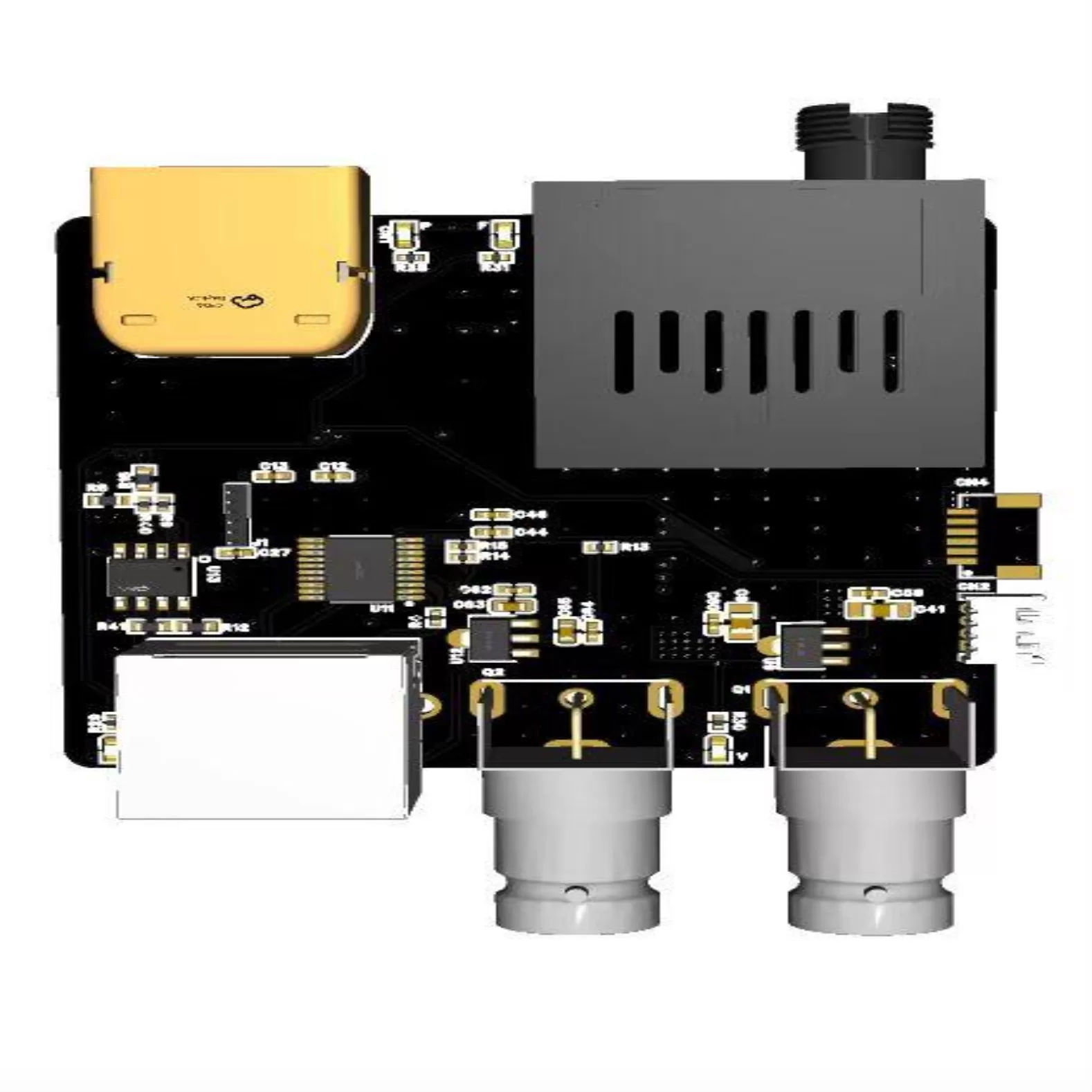

Fiber Optical Signal Receiver / Ground Module

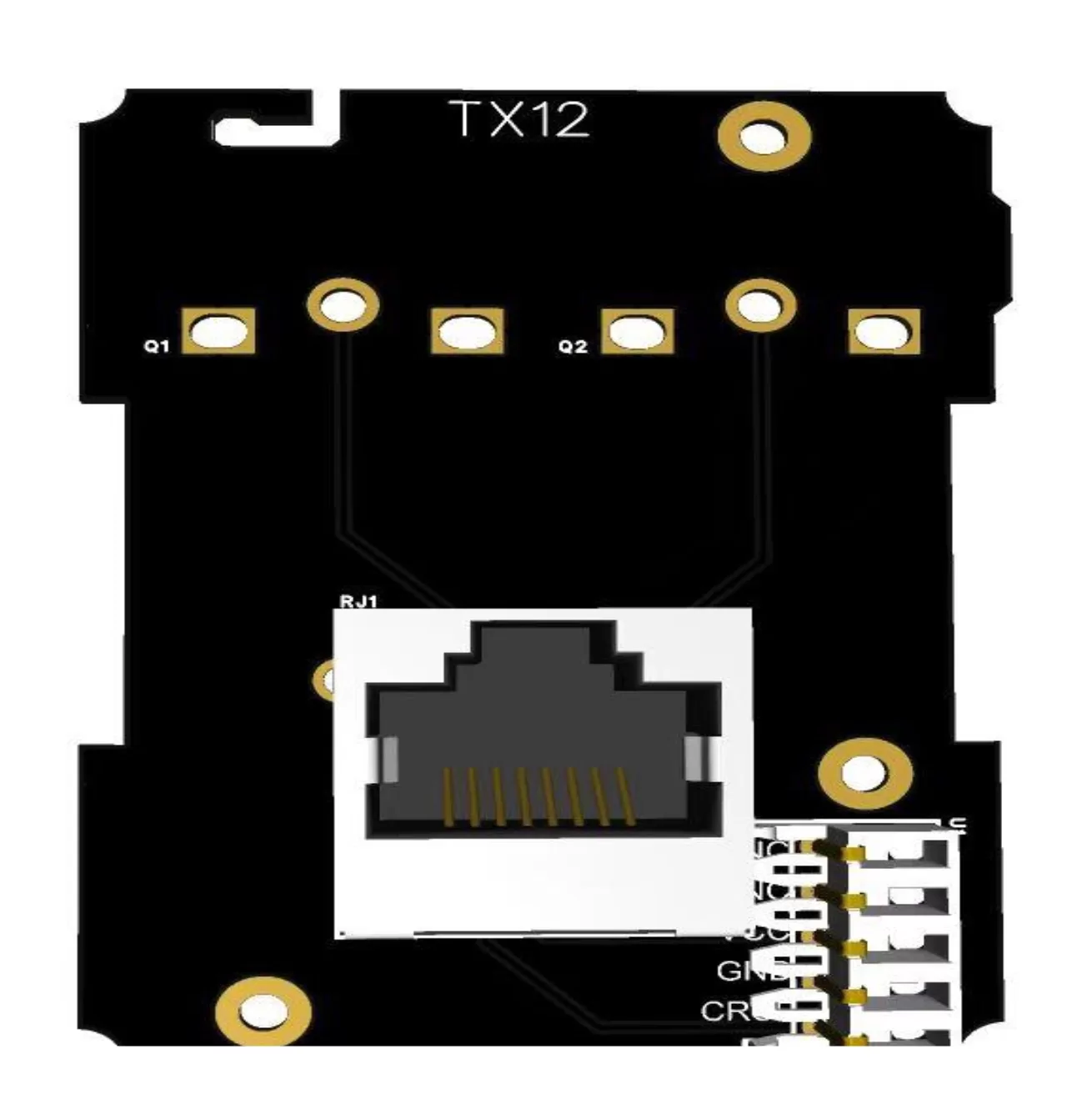

Optional High-end setup: Video Data Converter for Flight Controller

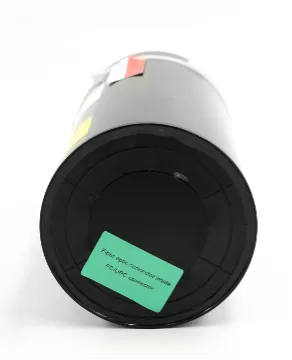

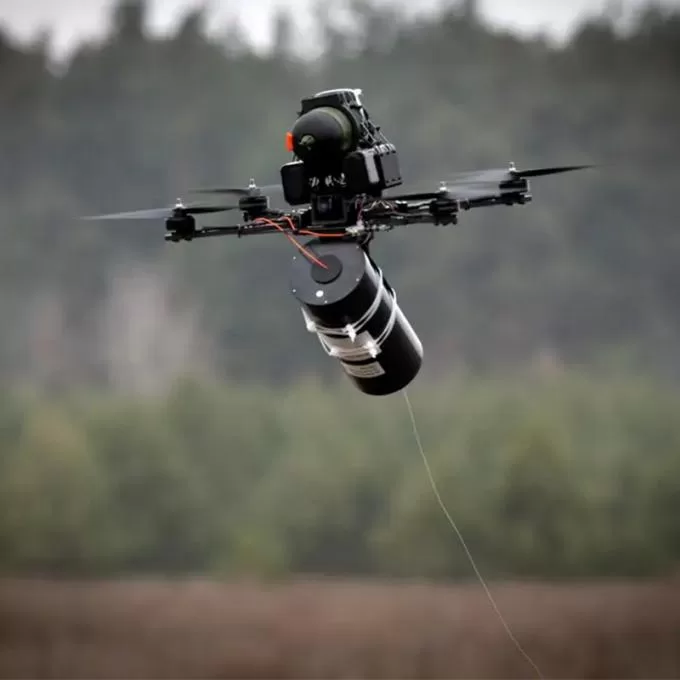

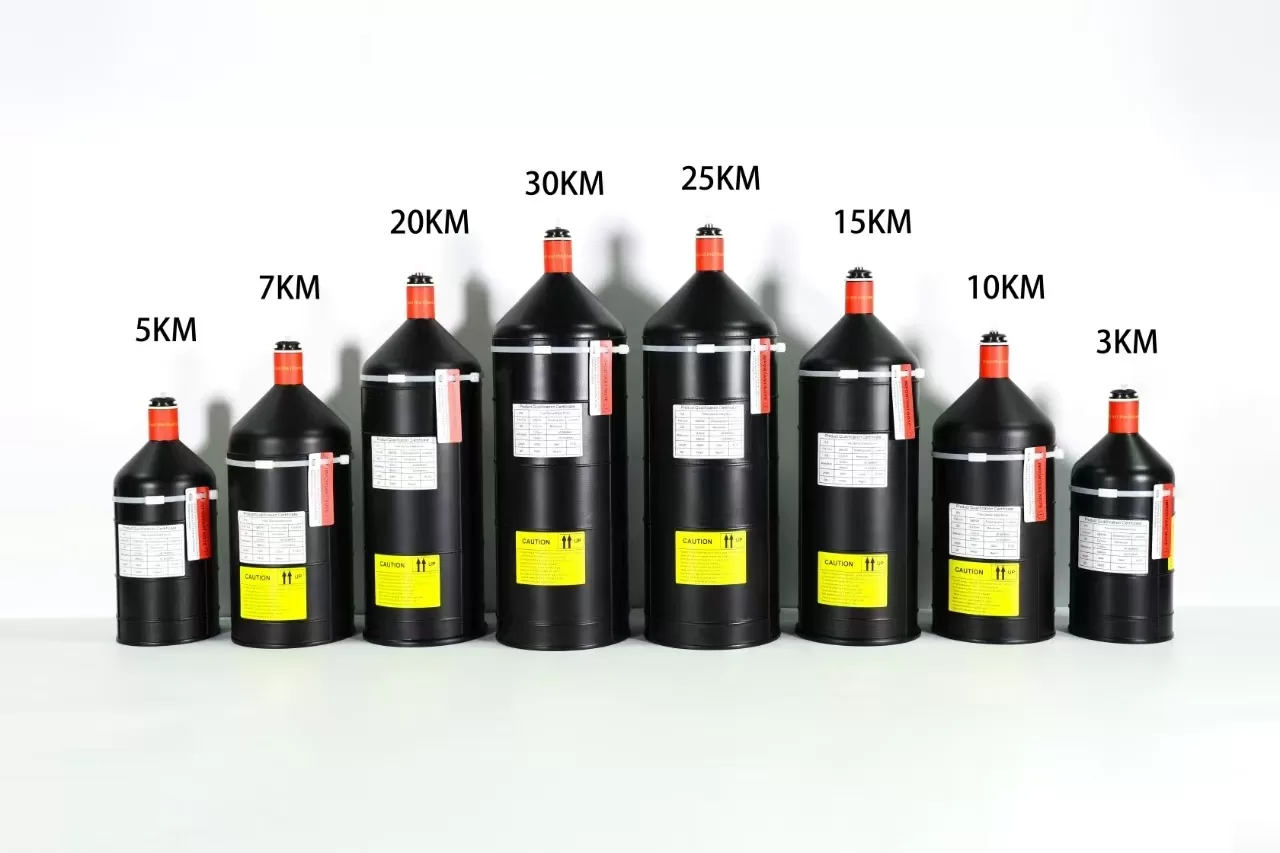

FPV Drone Fiber Optic Spool

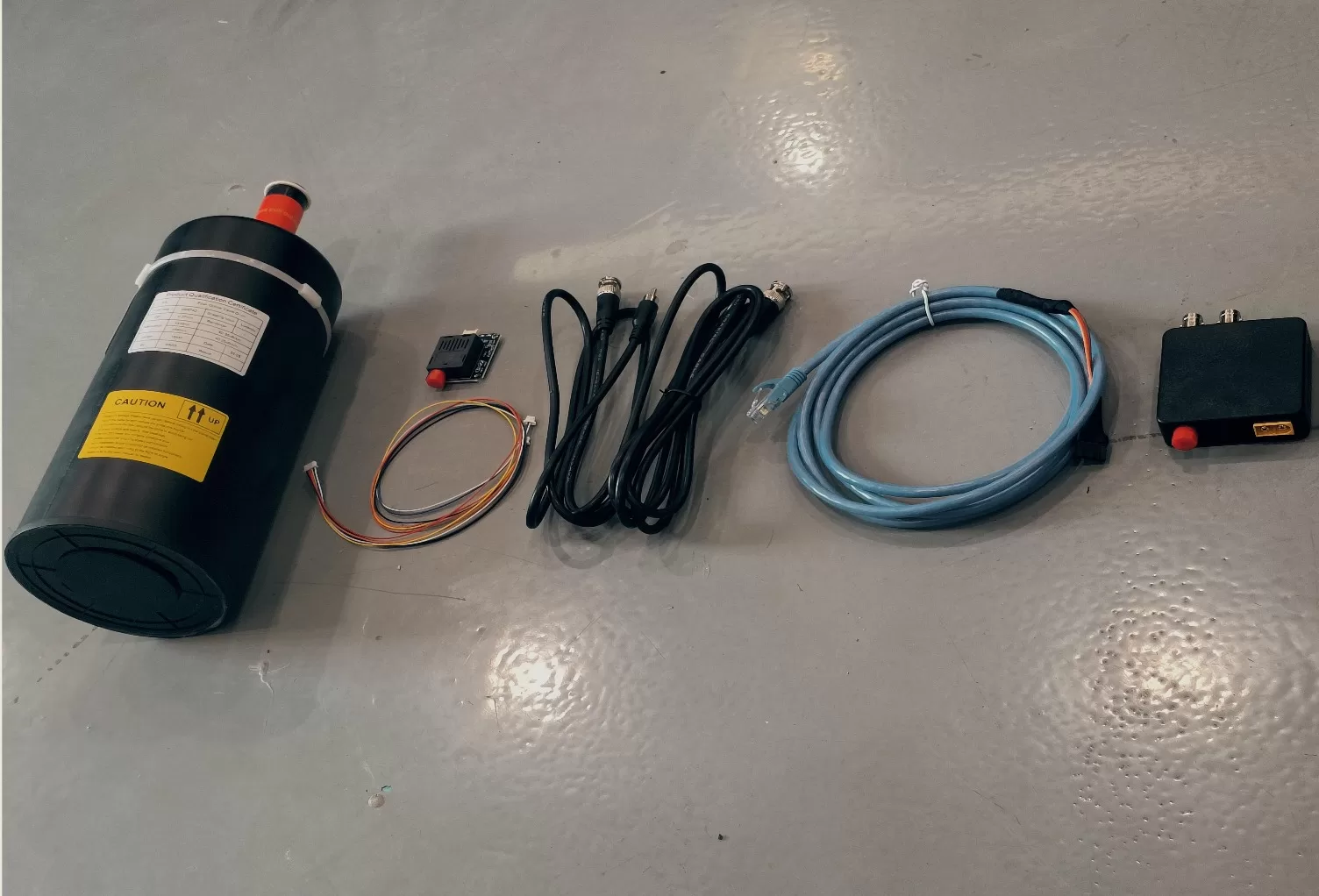

Type 1: Fiber Spool with External Sky Module

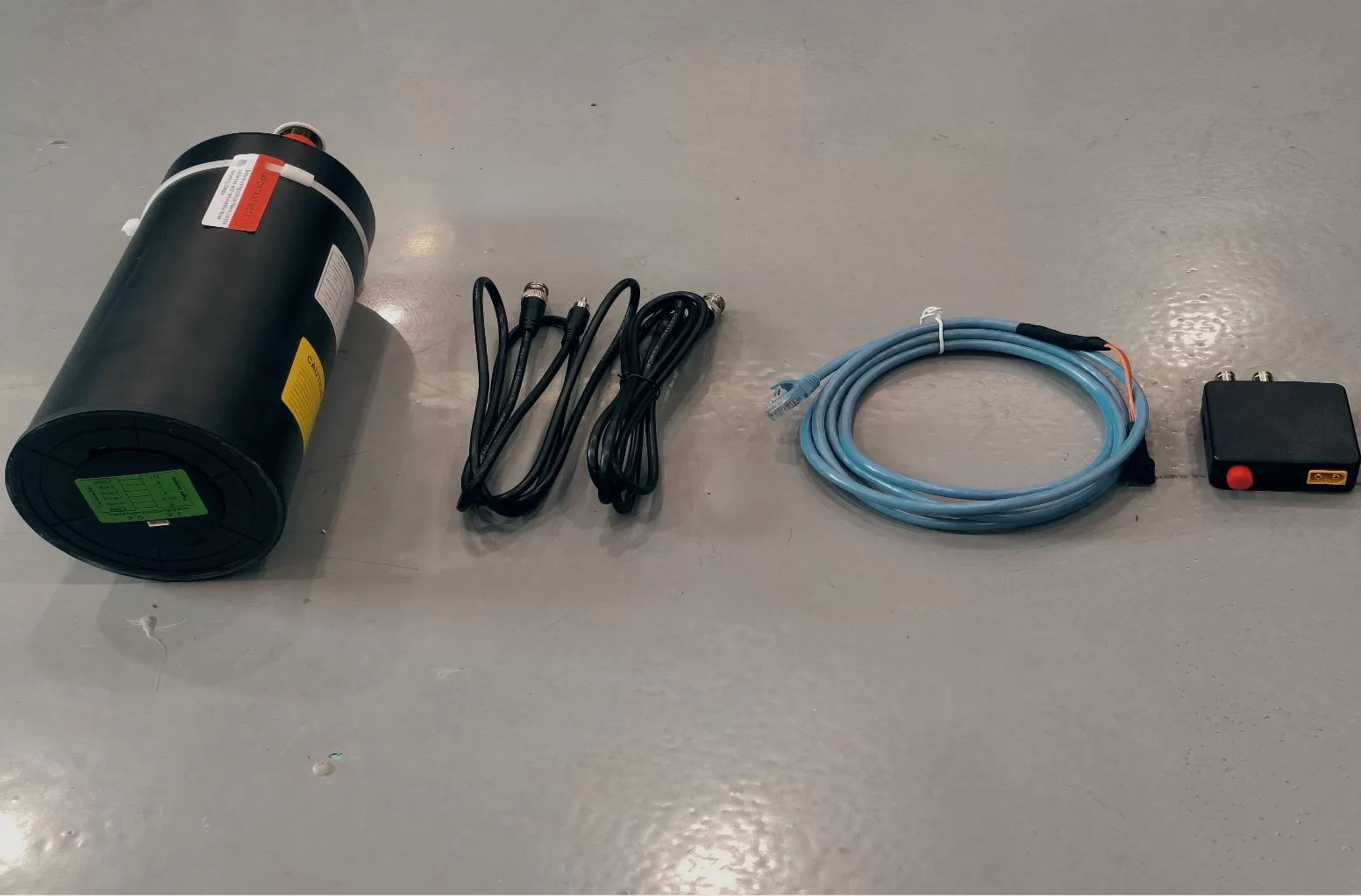

Type 2: Fiber Spool with Embedded Sky Module
Specification Parameters:
| Optical Signal Transmitter (TX) | |
| Input Power | 5-9 V |
| Interfaces | UART and Video 1.25mm 6P |
| Video Protocols | PAL / NTSC 1.25mm 6P |
| Control Protocol | CRSF |
| Transmission Distance | 25km / 40km |
| Wavelength | 1310nm /1550nm |
| Dimensions | 38*38mm |
| Weight | 13g |
| Optical Signal Receiver (RX) | |
| Input Power | 4S – 6S with XT60 |
| Interfaces | Video BNC RCA |
| Video Protocols | PAL / NTSC |
| Protocol | Overall system |
| Max Distance | >25km |
| Wavelength | 1310nm /1550nm |
| Dimensions | 81*63*25mm |
| Weight | 65g |

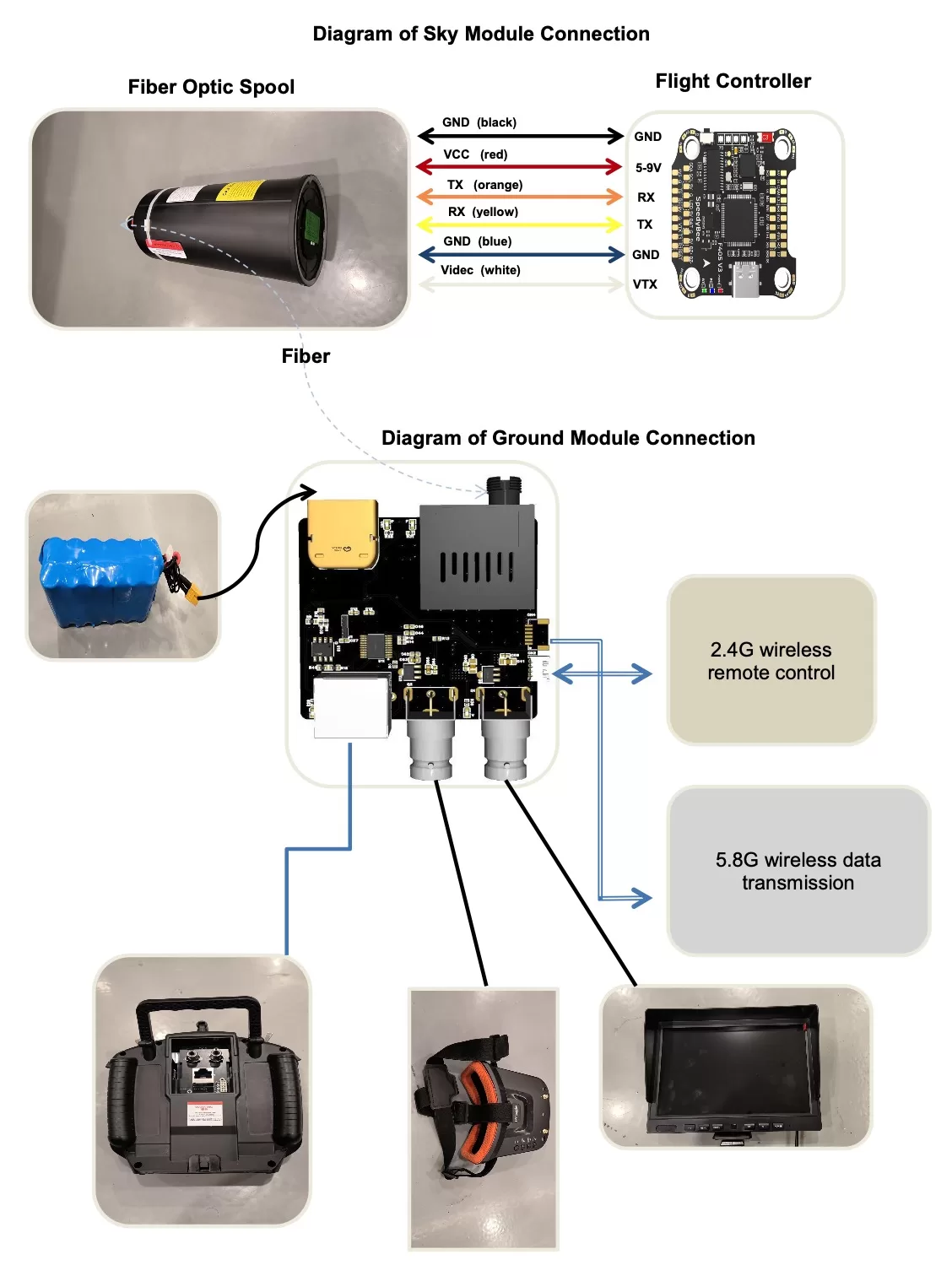

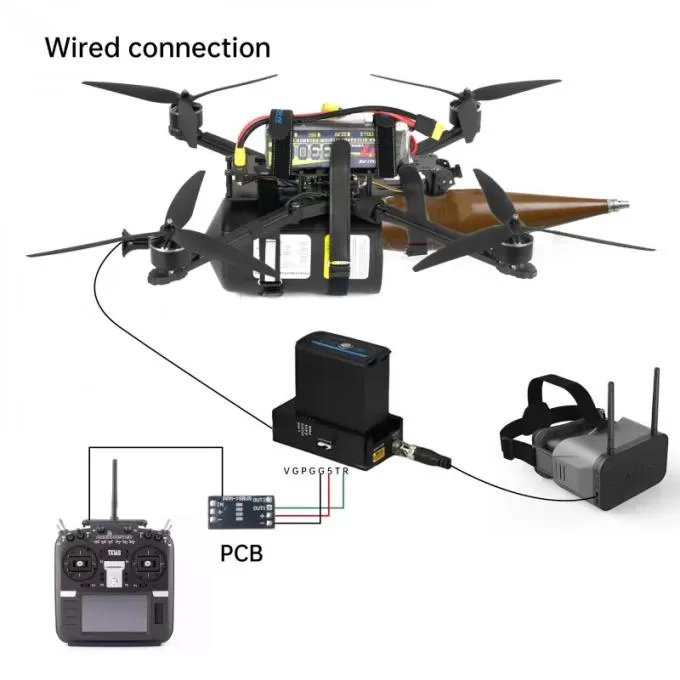

Default Version Setup

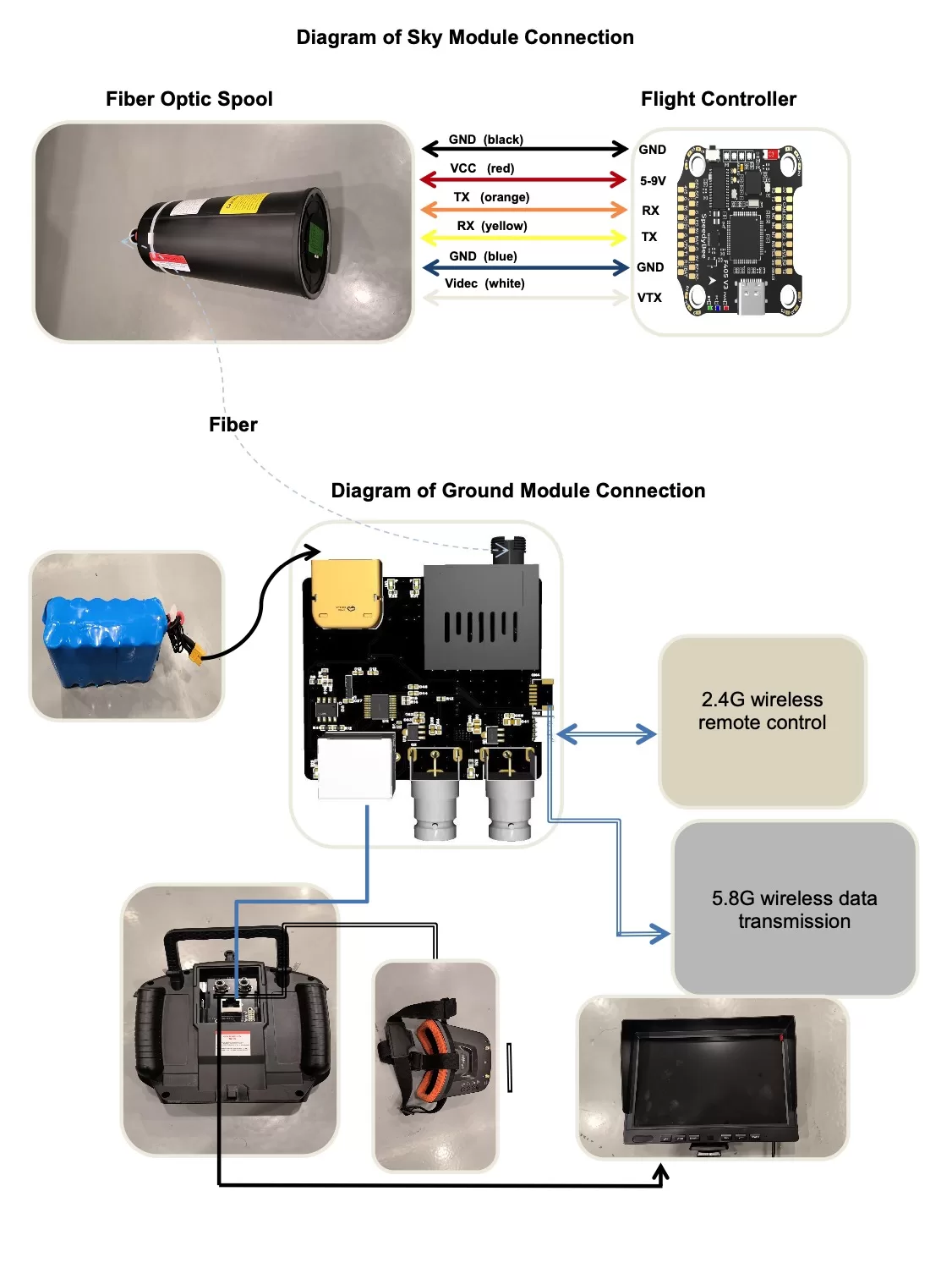

High-end Version Setup

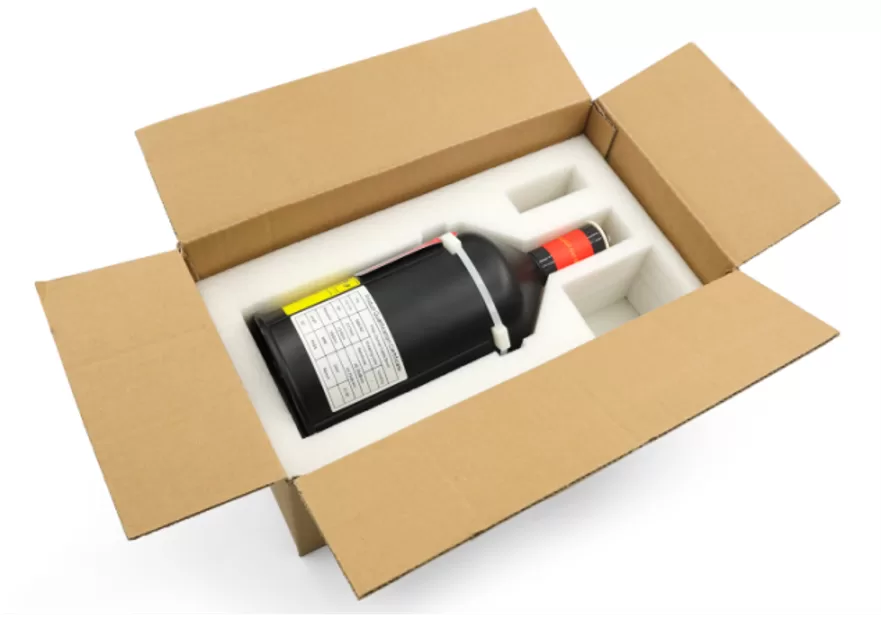

Fiber with drum Only , No sky & Ground Module and Video data Adapter ( No Accessories)

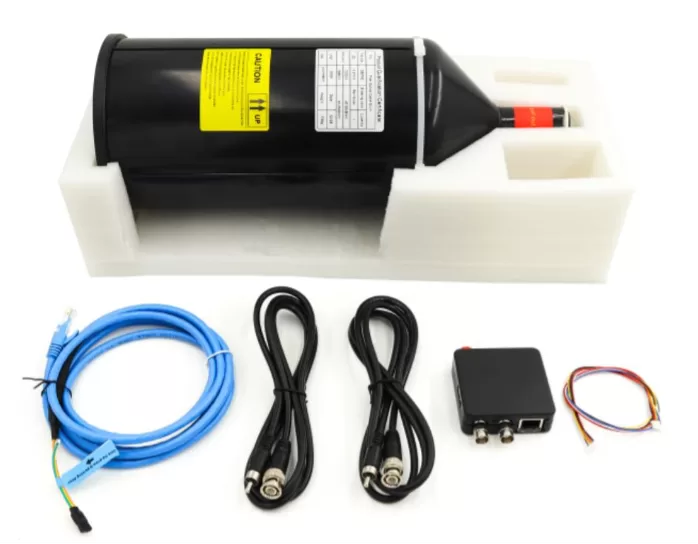

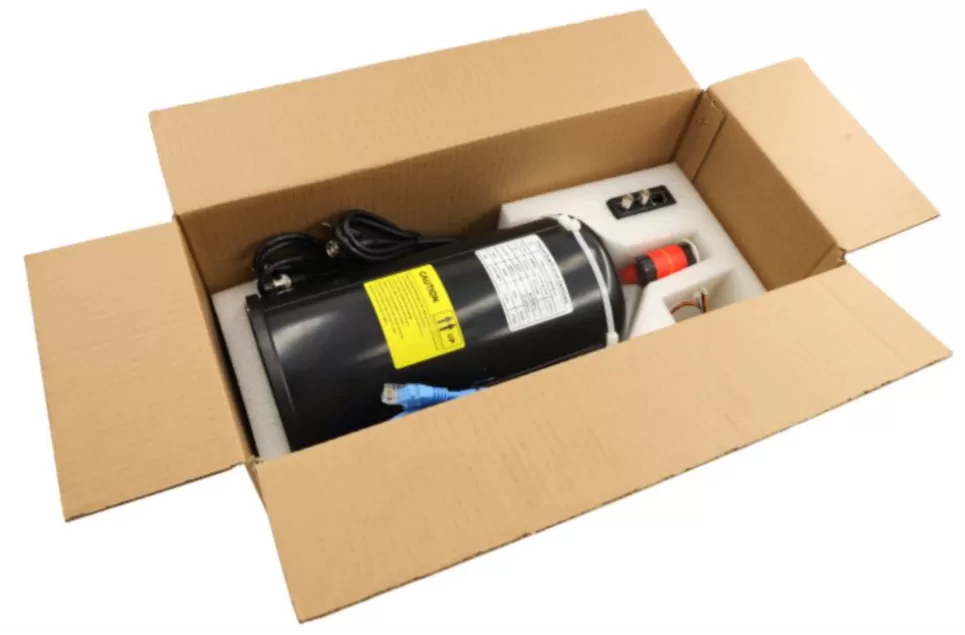

Fiber with Sky & Ground Module Accessories
Get FPV Optical Fiber Digital Communication Module for Your Specific Needs
- Anti-interference
- Stable and reliable
- 5-30km long-distance communication
- Ignore terrain obstructions
- Eavesdropping and tapping prevention
- High-speed transmission of big data
